Palletisation Line

DESIGN OF CUSTOM-MADE LINES

Ligne de palettisation

On the strength of its experience as a designer and manufacturer of machines for the agri-food industry, SYSTEM notably develops specialised systems, including a modular palletisation line to improve food product traceability and respect the production rates imposed by the packaging process.

Our technology is adapted to all production rates and will meet all your requirements, such as the use of containers, setting up secondary packaging (cardboard or plastic boxes) and the management of pallet boxes.

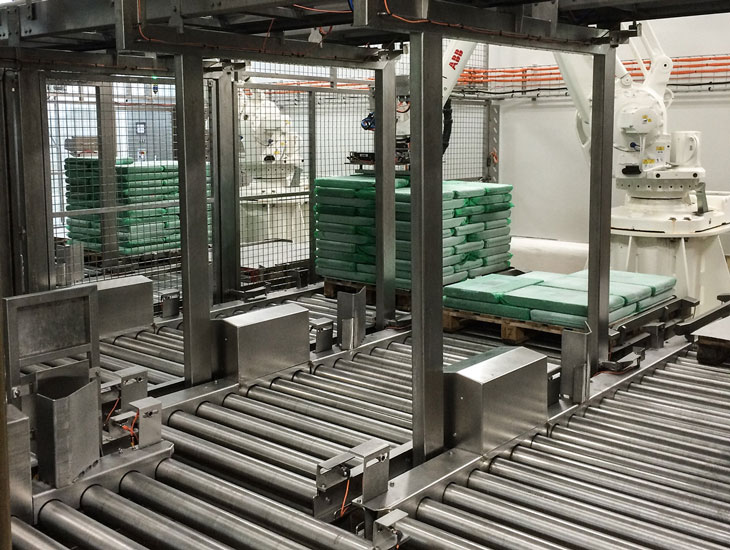

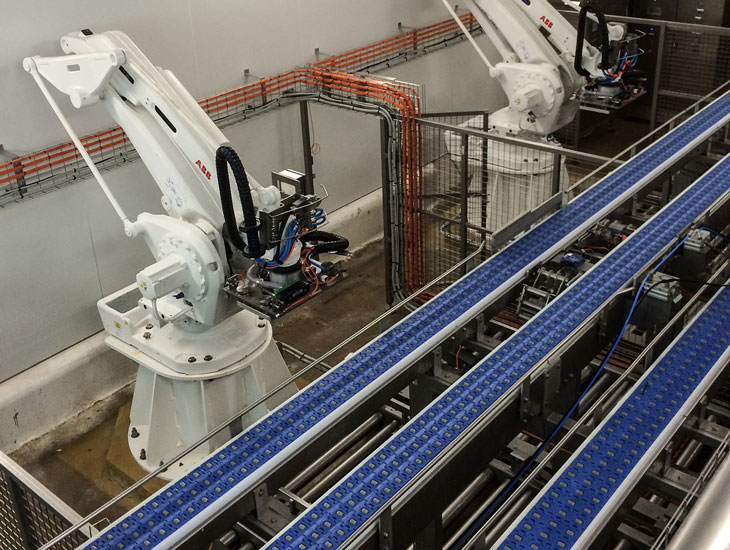

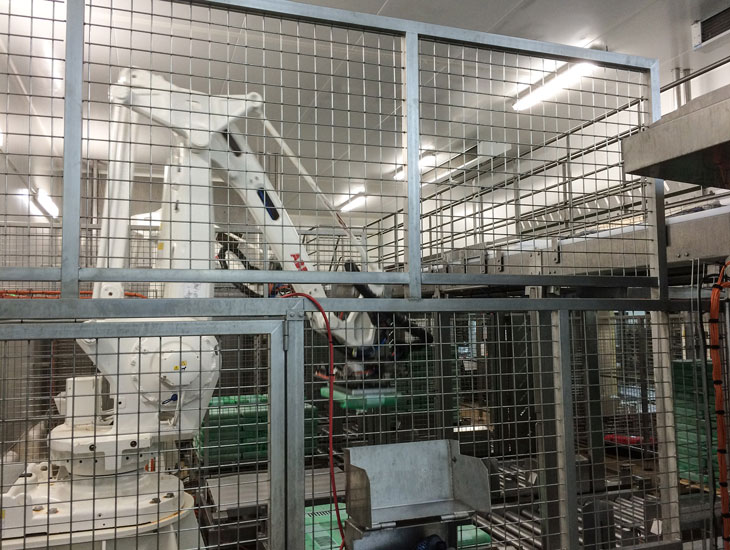

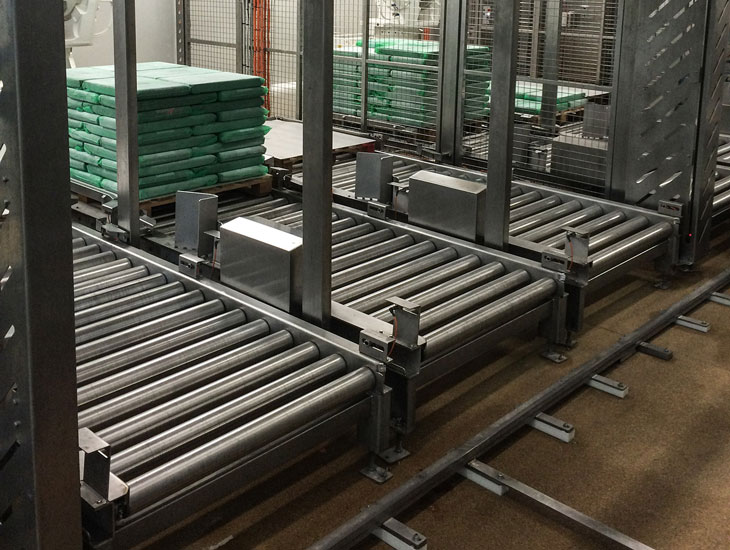

We offer an automated solution which is personalised to create very flexible lines. This solution is designed with the double objective of being both robust and reliable. You can choose from feeding from above or below according to the logistical constraints in your factory. This SYSTEM-designed machine transports products using a modular belt conveyor towards automated islands, which palletise them one by one. Once the operation is finished, the palettes are sent automatically towards a shuttle, positioned opposite each roller conveyor. Next, the shuttle transports them towards a weighing conveyor and then to the wrapping zone to be covered with film. At the same time, the shuttle supplies the automated islands with empty palettes. The weighing information is transmitted automatically.

Once a palette has been covered with film and weighed, it is sent to the line output.

Download our product brochures

Veuillez indiquer le nom de votre entreprise
Veuillez indiquer le nom et le prénom du contact
Veuillez indiquer une adresse email valide
Veuillez indiquer votre numéro de téléphone au format 00/00/00/00/00

DO YOU HAVE A PROJECT?

Contact us today

enveloppe telephone

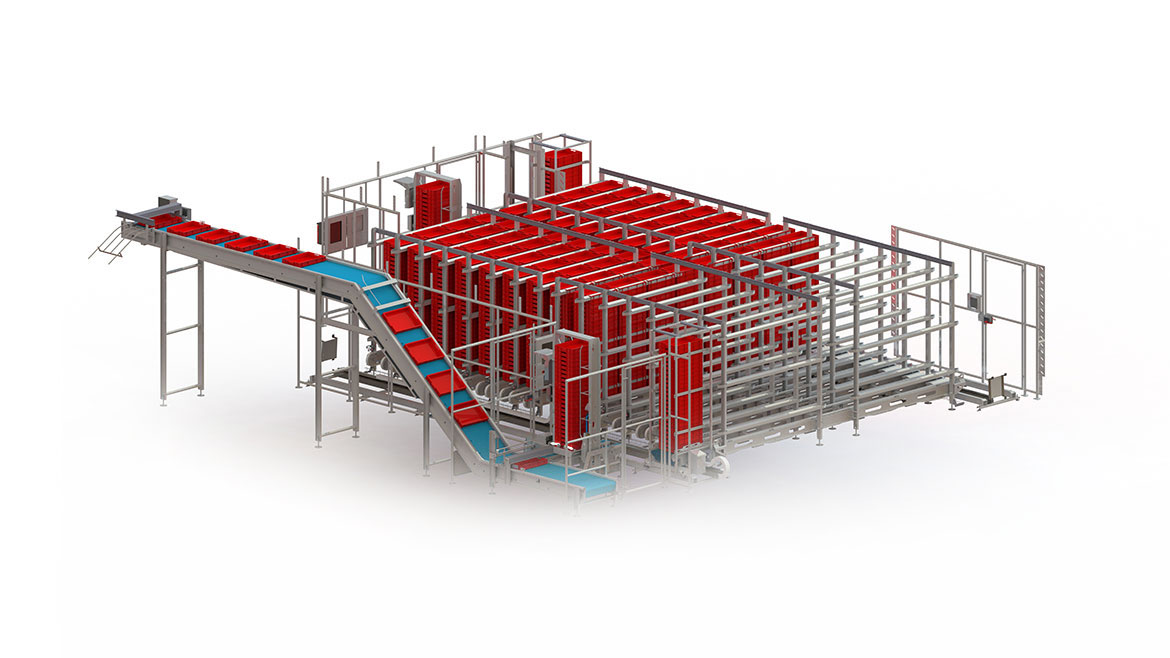

Automated pallet box loading and unloading line

SYSTEM, a designer of machines for the agri-food industry, makes custom-made automatic storage-handling solutions.

Find out more

Automated pallet box washing

A specialised line for the agri-food industry, adapted in particular for processing and preserving meat.

Find out more

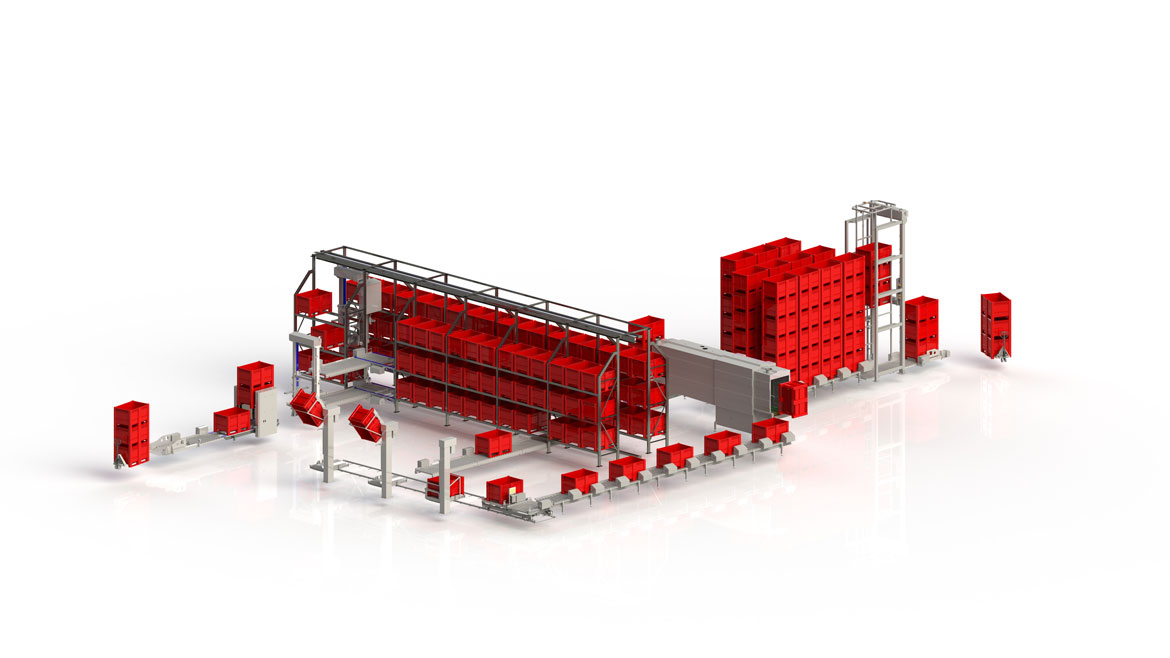

Automatic emptying line for pallet boxes

System to develop a complete line for the reception of raw materials in pallet boxes, with automatic emptying followed by washing and return of stacks of clean pallet boxes Speed 80 cp / h

Find out more

Cardboard box and crate conveyor line

SYSTEM has developed a line for transporting light loads to improve logistics on production sites.

Find out more
